F-THR4-FS-120

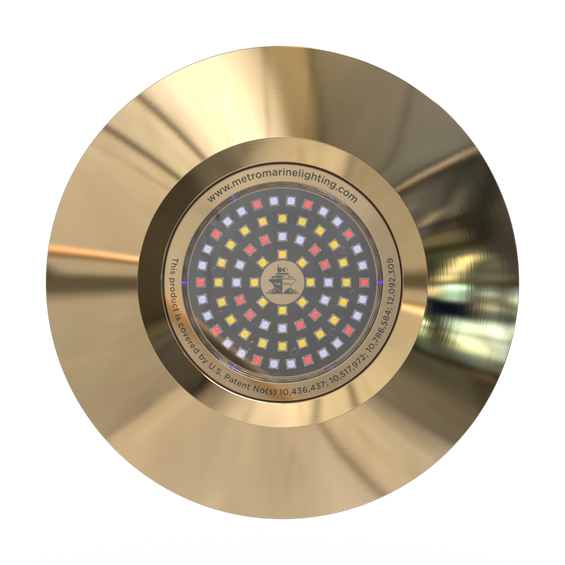

Full Spectrum Round Fixture, Thru Hull Mount, RGBW, 120° Beam Angle
Full Spectrum
120°
15,500 lm
Full Spectrum Round Fixture, Thru Hull Mount, RGBW, 120° Beam Angle
The F-Series line of underwater marine lighting fixtures is designed to be mounted at a depth of up to 4.6 m (15 ft) below the water's surface to provide vibrant color and color-changing light in the water. With watertight aluminum bronze housings and silicon bronze hardware, Metro Marine's F-Series luminaires are perfect for marine-based applications such as thru-hull installation on yachts, as well as mounting to docks, sea walls, and for use in fountains and theme park installations. Leveraging Metro's rich legacy of innovation and leadership in optics & LED control technology, the F-THR4-FS-120 introduces a unique LED array to the market with 80 H.O. LEDs per fixture, 74 RGBW and 6 UVC, allowing close adjacent fixture placement where fully-mixed, uniform light is important. The close color mixing distance eliminates visible color separation, while integrated UVC emitters provide patented anti-biofouling protection that keeps the lens clean and growth-free, and Metro's patented assembly method prevents condensation from forming inside the fixture.
The F-THR4-FS-120 is a superior underwater RGBW LED luminaire with 120° optical lensing for lighting mid- to large-scale structures and yachts ranging from 10 m (32 ft) to 30 m (100 ft), with uniform color control, and high efficiency.
Specifications*
Output
Beam Angle: 120°
Lumens per channel: Red 3,900 / Green 7,000 / Blue 1,600 / White 15,500
White Lumens (Maximum): 15,500 Lm
Efficiency (lm/W): 103.33
LED Channels: RGBW
LED Count: 80 (74 RGBW, 6 UVC)
Electrical
Input Voltage (Fixture): 24VDC
Input Voltage (HUB): 10VDC - 30VDC
Power Consumption: 150 W
Control
Interface: MM-CC-V1 / F-HB-2-FS5
Lumen Maintenance
L50 at 25 °C: Reported > 66,000 / Calculated > 100,000
L50 at 50 °C: Reported > 66,000 / Calculated > 100,000
Physical
Dimensions: Face Ø: 163.000mm (6.417") Body Ø: 98.000mm (3.858") L: 168.656mm (6.640")
Net Weight: 9.60 lbs (4.35 kg)
Housing Material: Die-cast marine aluminum bronze, polished finish
Lens: Clear Quartz
Luminaire Connections: Integral male/female IP68 connectors.
Temperature Ranges
-40 to 50 °C (-40 to 122 °F) Operating
-20 to 50 °C (-4 to 122 °F) Startup
-40 to 80 °C (-40 to 176 °F) Storage
Complies with ASTM B117 standard for > 1,500 hours
Humidity 0 to 95%, non-condensing.
Luminaire Run Lengths
To calculate luminaire run lengths and total power consumption for your specific installation, contact www.metromarinelighting.com/support
Approbation, Lloyd's Register(Pending), ABS(Pending), ABYC Compliant.
Environment
Wet Location, IP9K and IP68 Submersible up to 4.6 m (15 ft)
LUMINAIRE and ACCESSORIES
Use Item Number when ordering in North America
Luminaire Item Number
F-Series RGBW, ITEM#: F-THR4-FS-120, Luminaire only. Accessories sold separately.
Accessories
RGBW HUB
F-HB-2-FS5
MFD Interface / IOS App
MM-CC-V1
